THT-LCD   Humidity Logger

The THT-LCD is a handheld humidity datalogger with an external humidity and temperature probe and a liquid crystal display. Both Relative Humidity and Dew Point can be displayed and logged. There are two external Humidity/Temperature probes available for the THT-LCD. The HT11-Probe uses a Sensirion SHT11 digital humidity sensor giving ± 3.5%RH accuracy from 10%RH to 90%RH. The HT15-Probe uses a Sensirion SHT15 digital humidity sensor giving ± 2%RH accuracy from 10%RH to 90%RH. This logger is designed for indoor use (IP 40). For outdoor applications, we recommend mounting the THT-LCD in a TruTrack Seahorse Logger Enclosure.

Specification:
	Humidity Sensor:

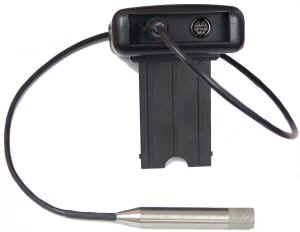

		Probe Plug	The probe is connected to a socket on the end plate at the top of the logger. The probe cable is 1.5 metres.
		HT11-Probe Normal Accuracy	Sensirion SHT11 Digital humidity sensor Long-term stability Fully calibrated by Sensirion Response time 4 seconds Range 0%~100% Accuracy ± 3.5%RH from 10% to 90% Accuracy ± 5%RH from 0% to 10% and 90% to 100% Resolution 0.1%RH Digital temperature sensor accuracy ± 0.4º C @ 25º C
		HT15-Probe High Accuracy for both Humidity and Temperature	Sensirion SHT15 Digital humidity sensor Long-term stability Fully calibrated by Sensirion Response time 4 seconds Range 0%~100% Accuracy ± 2%RH from 10% to 90% Accuracy ± 3.5%RH from 0% to 10% and 90% to 100% Resolution 0.1%RH Digital temperature sensor accuracy ± 0.3º C @ 25º C
		Filter	The sensor is covered in a Sensirion SF1 Filter cap. The filter cap provides protection against water, dust and other contaminants for the humidity and temperature sensor.  The filter cap consists of a single piece of polypropylene including a filter membrane.  The filter provides filtration efficiency of 99.99% of all 0.1µ m particles and has an optimized response time of typically 30s (1/e (63%) slowly moving air).
	Dew Point:
		Sensor Type	The Dew Point is calculated from the current Relative Humidity and Temperature
		Accuracy	± 2º C (this is determined by the ± 3.5%RH accuracy of the humidity sensor
		Resolution	0.1º C
	Internal Logger Temperature:
		Sensor Type	Thermister
		Linear accuracy over range	± 0.3º C (0º C to 70º C)
		Repeatability	± 0.1º C
		Long term stability	± 0.1º C
	Logger:
		Working Temperature	-20º C to +70º C
		Storage Temperature	-30º C to +70º C
		Sampling Rate	1 second minimum 10 hours maxium in 1 second intervals
		Storage capacity	522,240 samples logging Relative Humidity only  362 days with 1 min logging interval (Relative Humidity only) 4.9 years with 5 min logging interval (Relative Humidity only) 174,080 samples logging Relative Humidity Dew Point and Temperature
		Alarms	Two independent Alarms Triggered on any combination of six user configurable Alarm Conditions Both alarms can be configured to send SMS messages Two Open Collector Alarm outputs Alarms can be visually checked on the LCD Display or by using the Omnilog Software
		Start modes	Start immediately Start on date/time Start on condition (eg Humidity < 30%RH) Start on trigger (push button on logger)
		Stop modes	Stop when memory is full Stop on date/time Loop around (continues logging)
		Logging Modes	Each channel can be set to log any combination of:  Point readings Average reading Maximum reading Minimum reading
		Battery	User Replaceable Two 3.6V Lithium AA cells One to Five years depending on usage.  The data is retained in the case of battery failure. Battery Status Monitor on LCD display and in OmniLog Software
		Download Time	9min 30sec for Full Logger
		Case material	ABS Plastic
		IP Rating	40
		Weight	185g
		Size	130mm x 80mm x 30mm

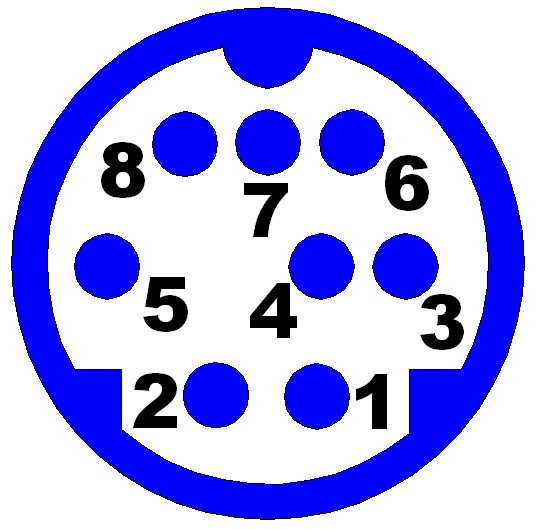

		Communication Connecter Pinout	The THT-LCD has a 8 pin Mini-DIN female socket. Pin 1  Common Pin 2  RS232 RX (out of logger) Pin 3  RS232 TX (into logger) Pin 4  RS232 CTS (out of logger) Pin 5  RS232 RTS (into logger) Pin 6  Alarm 1 Open Collector Output Pin 6  Alarm 2 Open Collector Output Pin 8  Power 5 to 16V DC A DLC8 download cable is required to connect the THT-LCD to a computer

 Logger status is shown as:

·                     Running

·                     Stopped

·                     Waiting (Waiting for “Start on Condition”)

·                     Waiting Trigger (Waiting for “Start on Trigger”)

If the logger is waiting for “Start on Trigger” it can be started in the field from the Menu provided on the display.

 If an Alarm has been triggered the display will show

·                     Alarm 1

·                     Alarm 2

If both Alarms are triggered “Alarm” will be displayed
continuously and “1” and “2” will flash consecutively.

 Low Batt will be displayed if the internal batteries requires
 replacement

THT-LCD Menu Options

Pressing the Enter button on the front panel of the THT-LCD
activates the Menu Display. The Down Arrow can then be used to scroll down through the various Menu Options. When the required menu option is displayed, press Enter to select this option. Menu Options on the THT-LCD are:

·                     Channel 1 (Display Relative Humidity)

·                     Channel 2 (Display Dew Point)

·                     Channel 3 (Display Probe Temperature)

·                     Channel 4 (Display Internal Temperature)

·                     Channel 5 (Display Battery Voltage)

·                     Samples (Display number of samples logged)

·                     Trigger (IF logger is waiting for Start on Trigger)

·                     Alarm 1 (Reset/Trigger) Trigger is used to test

·                     Alarm 2 (Reset/Trigger) the Alarms

·                     º C / º F toggle

The display will update at 1 second intervals for 1 minute after any button is pushed. It will then slow down to 10 second display updates (this is a power saving feature).
